Preset Recall from Web Interface

The button station features a page for easy recall of presets, suitable for integrating into other parts of the control system or touchscreens. After you have saved some presets with labels, go to the URL http://10.1.0.20/prepage (replacing the IP address with the address of your button station if necessary).

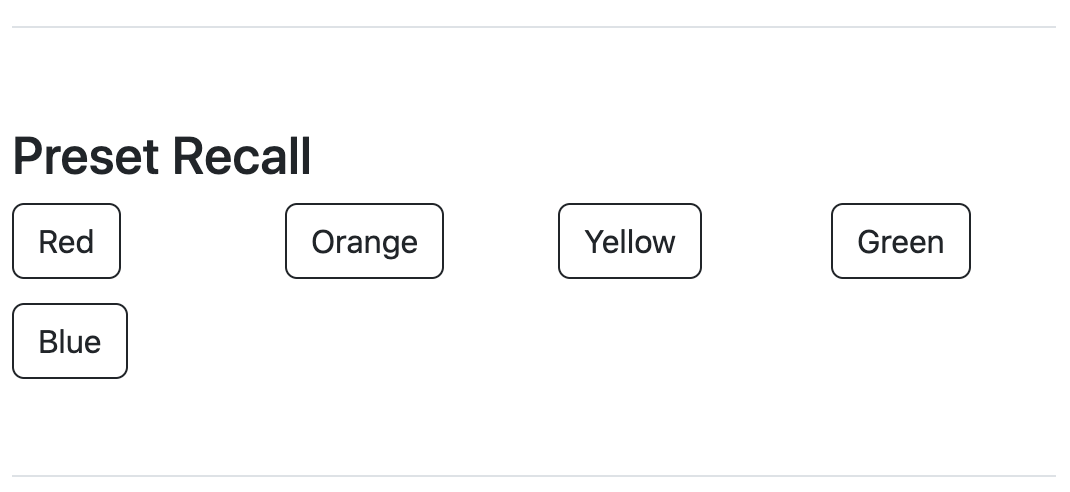

This will launch a page like this:
Image without caption

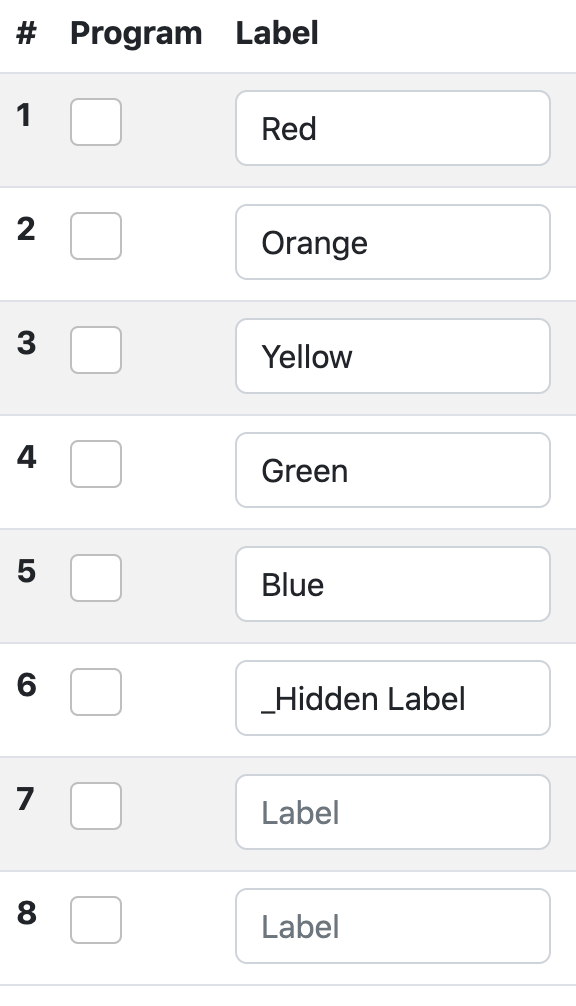

Any preset that is named is included in the list of presets.
Unnamed presets and named presets that start with an underscore will not appear in the list.
Clicking on a preset on the preset page will launch that preset.
If the button station is set to the page that preset is on, the button LED will switch to the active state.
Image without caption
