Prospero Cue Light (PCL) Overview

Image without caption

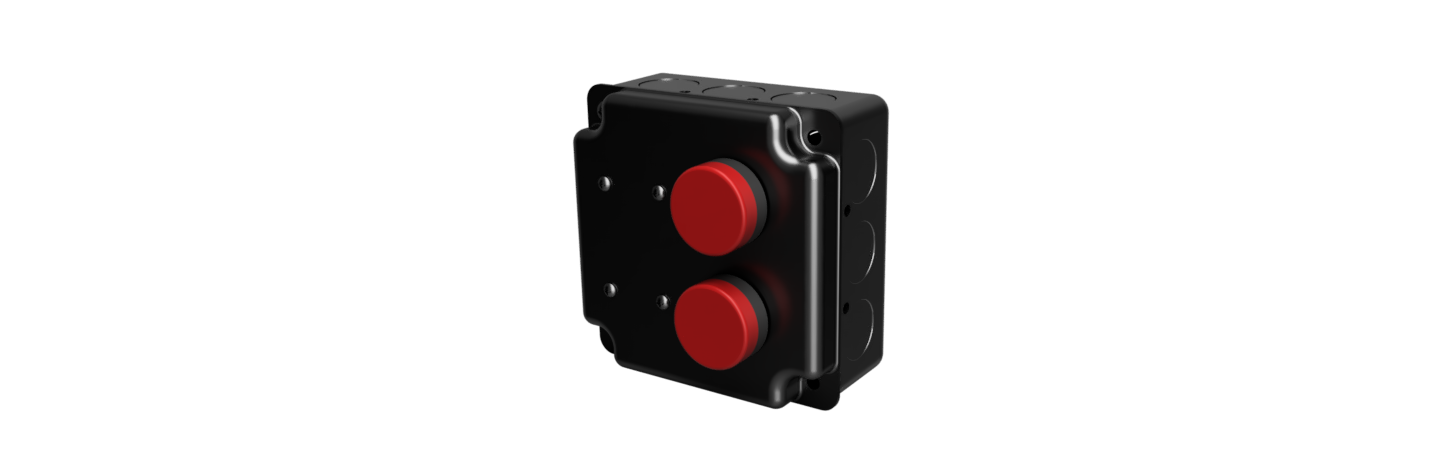

Prospero Cue Light (PCL) is a PoE-powered cue light module that controls two independent indicators via sACN.


PCL can be powered via PoE 802.3af Class 0, or 48V DC passive PoE.  It can also be powered by plugging 24-48V DC into the phoenix terminal adjacent to the ethernet jack.  The input power is polarity free.
The outputs A and B have regulated 12V DC constantly on, and switch the 0V leg.  These outputs are labeled on the PCB.
Of note, the indicators supplied with PCL are polarity free, so it does not matter which way they plug into the connectors.
