Prospero Parts - Visual Reference

Below you’ll find pictures and part numbers for all available spare parts for the Prospero DMX Cue Light Panel.
Don’t see something you need? Drop us an email at support@benpeoples.com.

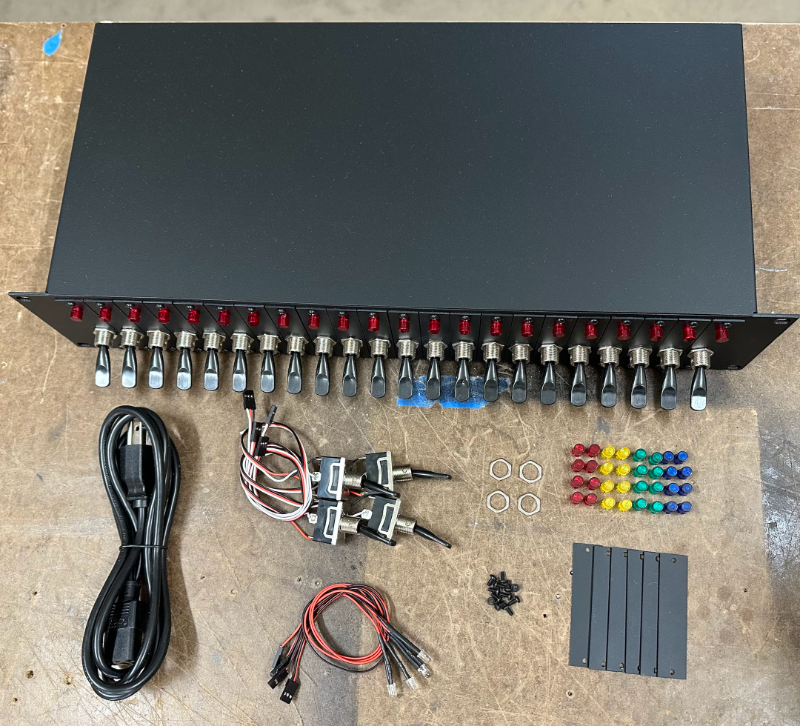

What’s in the Box?

A standard Prospero unit includes:
Complete Prospero parts set from factory
Complete Prospero parts set from factory
  • Prospero cue light panel (1) with (22) switches installed
  • Power cord (1)
  • Spare parts kit, including:
    • Red, Green, Yellow, Blue colored lenses, (8) each
    • Spare switches (4)
    • Spare switch nuts (4)
    • Spare LEDs (4)
    • Blank plates (single-wide) (6)
    • Spare screws (12)
Note that this is what ships from our factory. Prospero units from rental houses may ship with a different parts package.

Replacement Parts

Metalwork

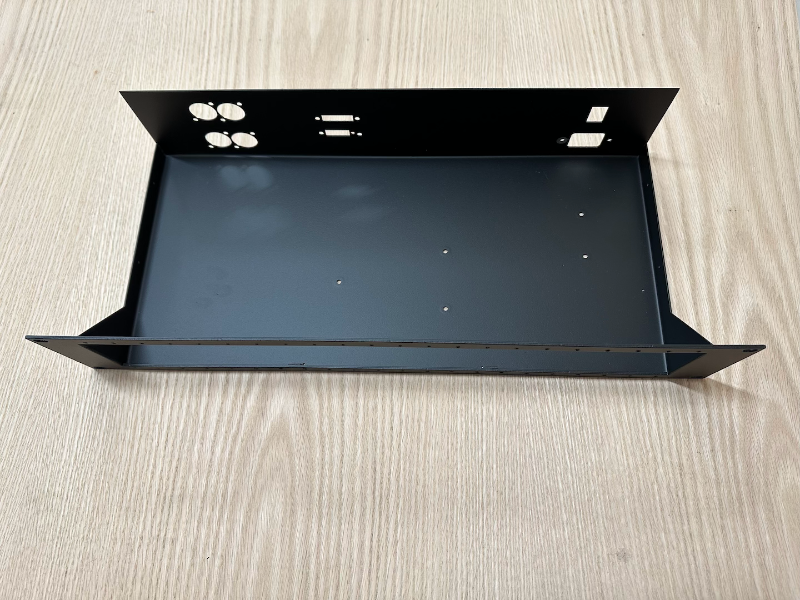

Enclosure w/Lid

PN: BPI-DMX24-ENC
QLP enclosure
QLP enclosure

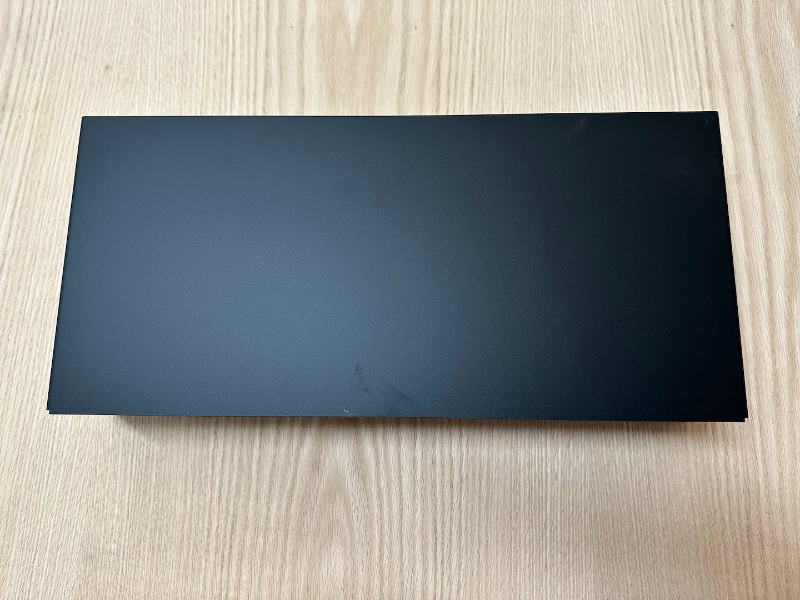

QLP lid
QLP lid

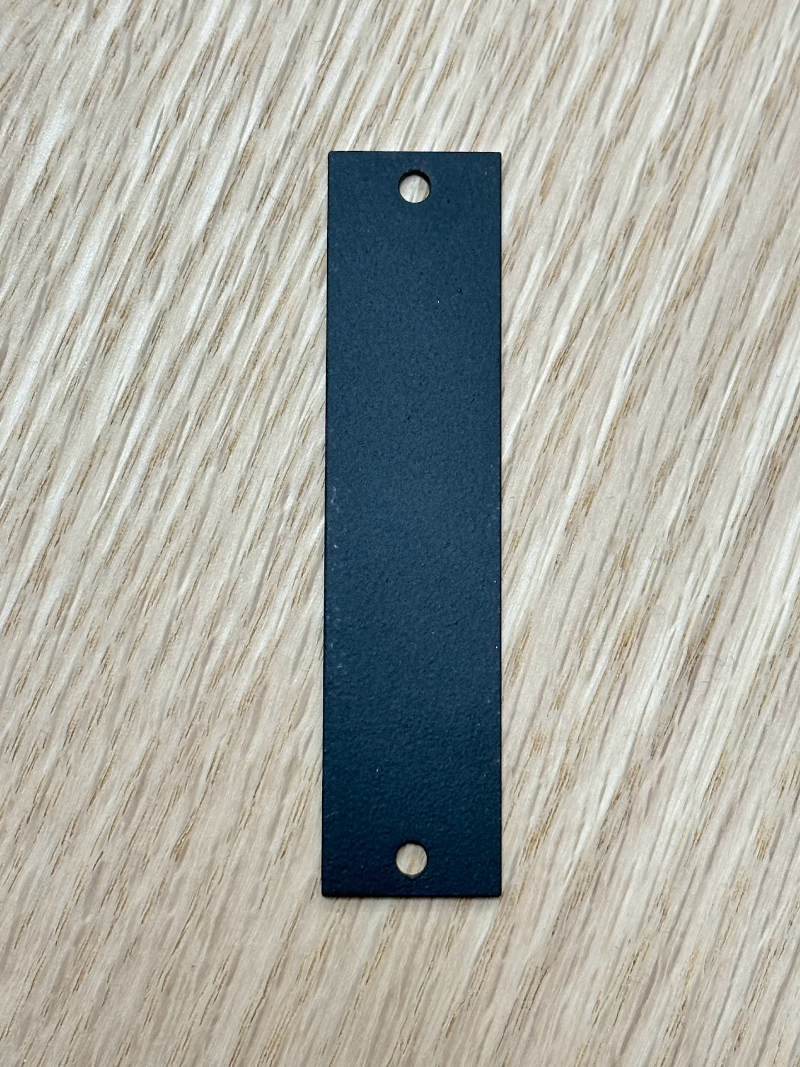

Type B (Single Blank) Plate

PN: BPI-DMX24-P-B
Image without caption

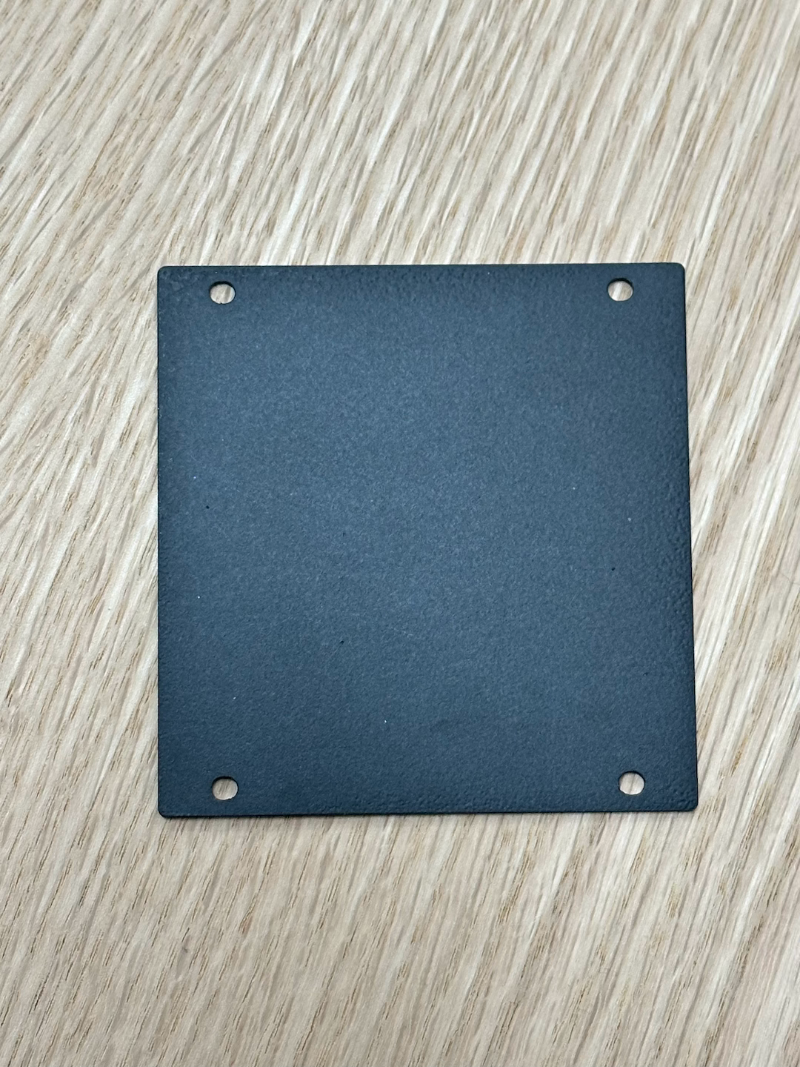

Type B4 (4-Wide Blank) Plate

PN: BPI-DMX24-P-B4
Image without caption

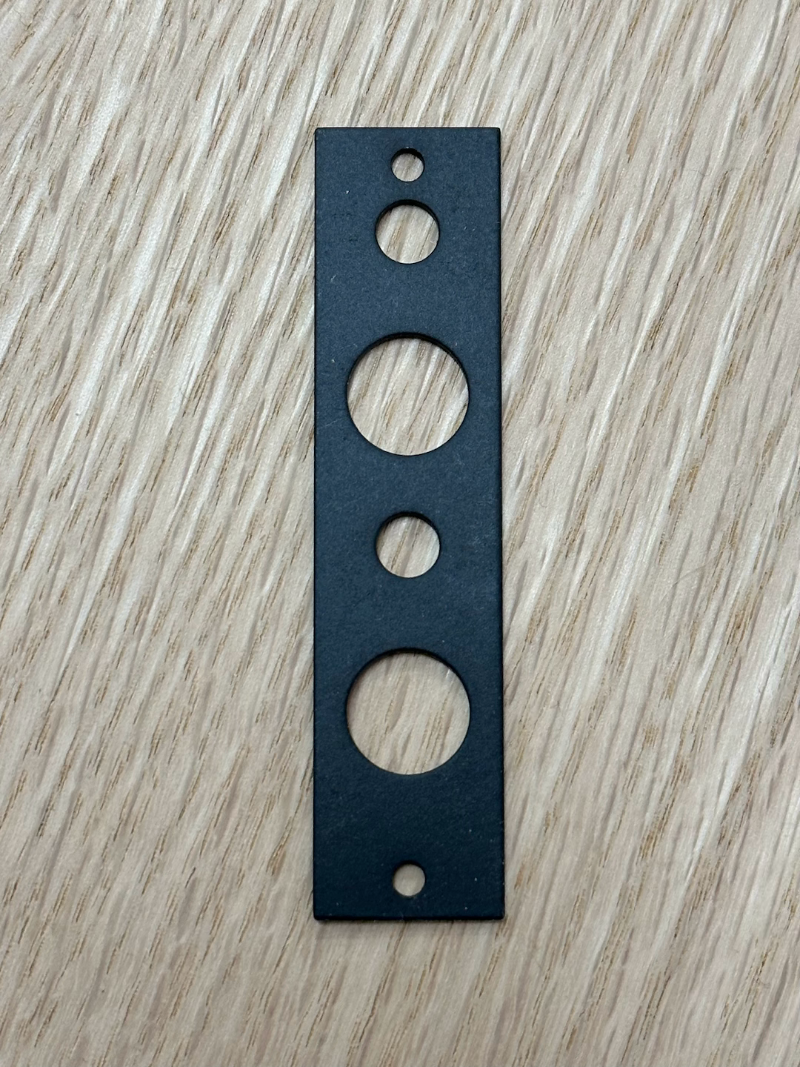

Type C (Double Switch) Plate

PN: BPI-DMX24-P-C
Image without caption

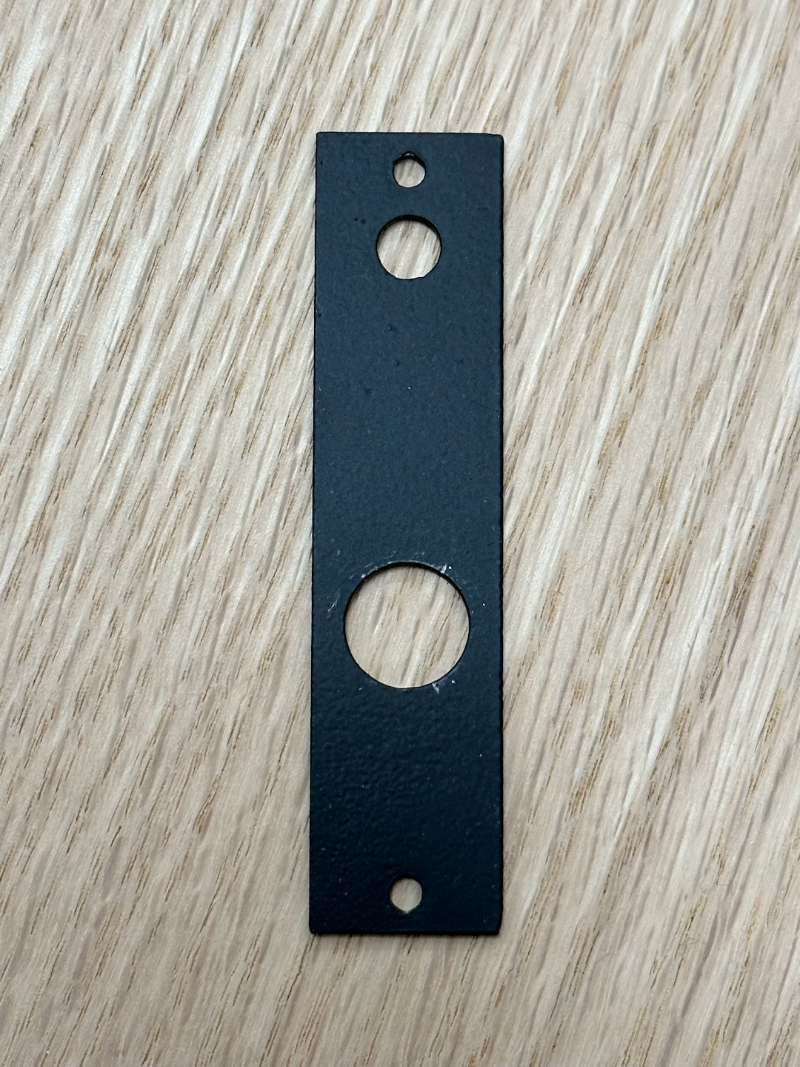

Type D (Single Switch) Plate (Standard)

PN: BPI-DMX24-P-D
Image without caption

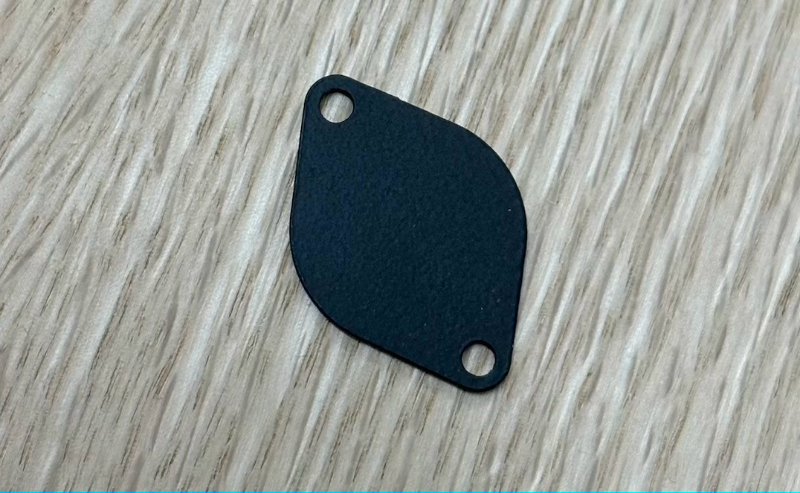

XLR Cover Plate (2, w/hardware)

PN: BPI-DMX24-CVR
Image without caption

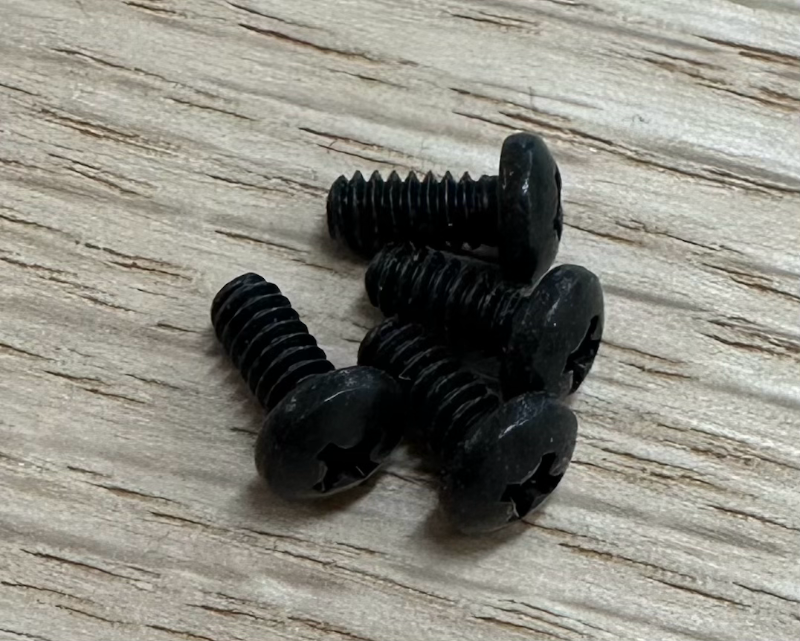

1/4" #4-40 Screws for Plates (48)

PN: BPI-DMX24-SCR
Image without caption

Switch Parts

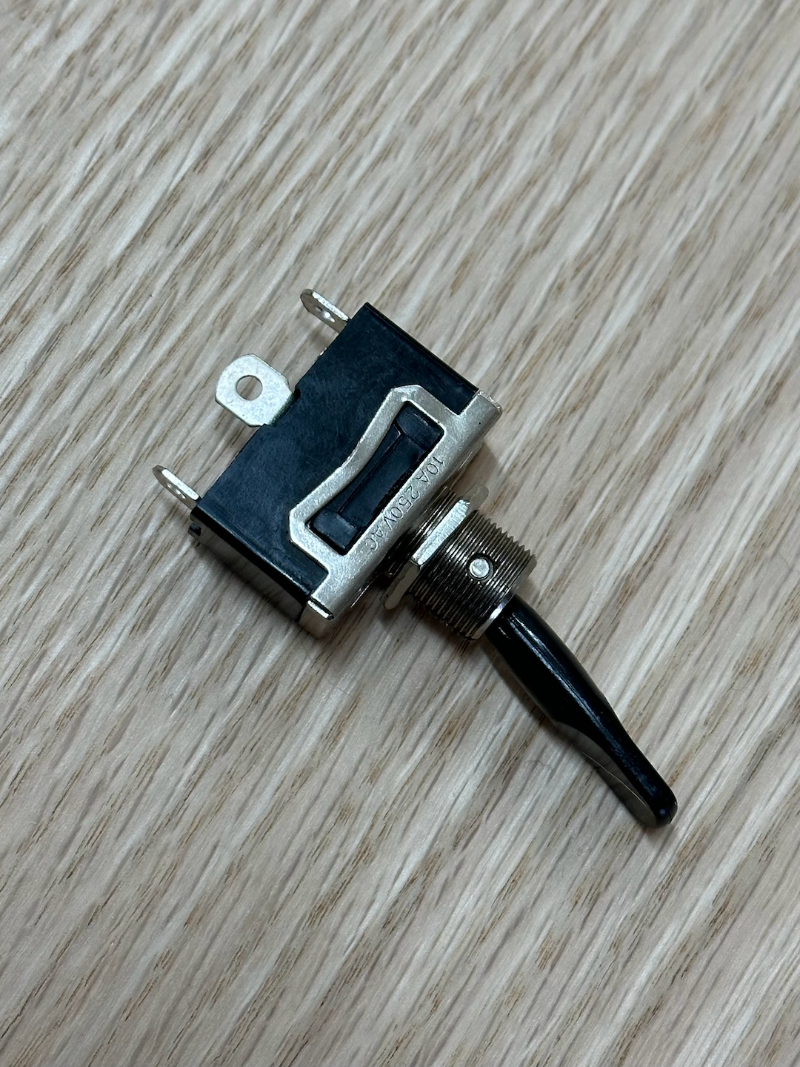

Single Switch without Tail

PN: BPI-DMX24-SW
Image without caption

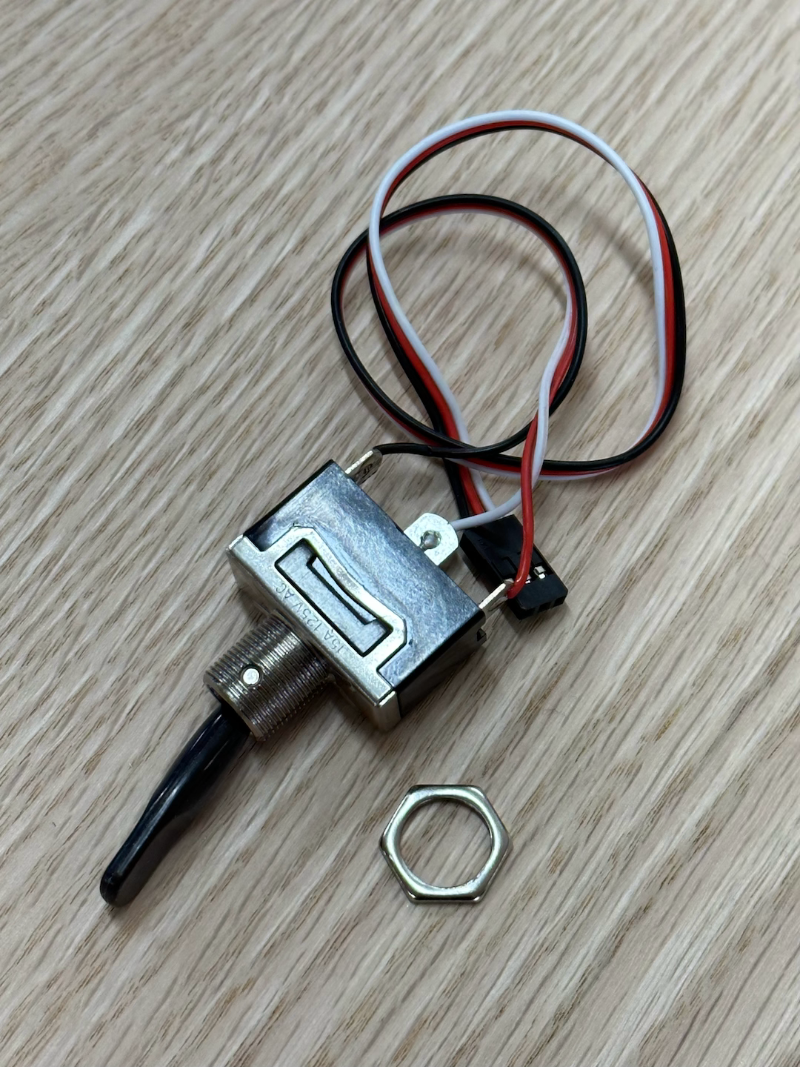

Single Switch with Tail

PN: BPI-DMX24-ST
Image without caption

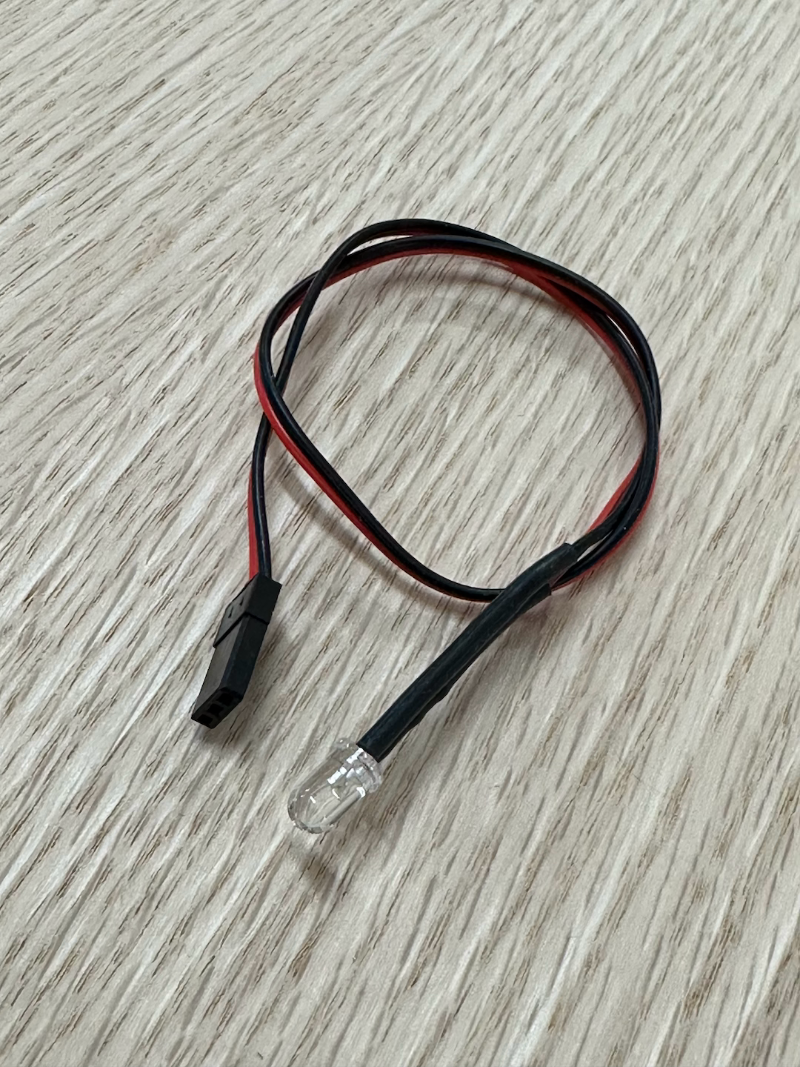

Single LED with Tail

PN: BPI-DMX24-LT
Image without caption

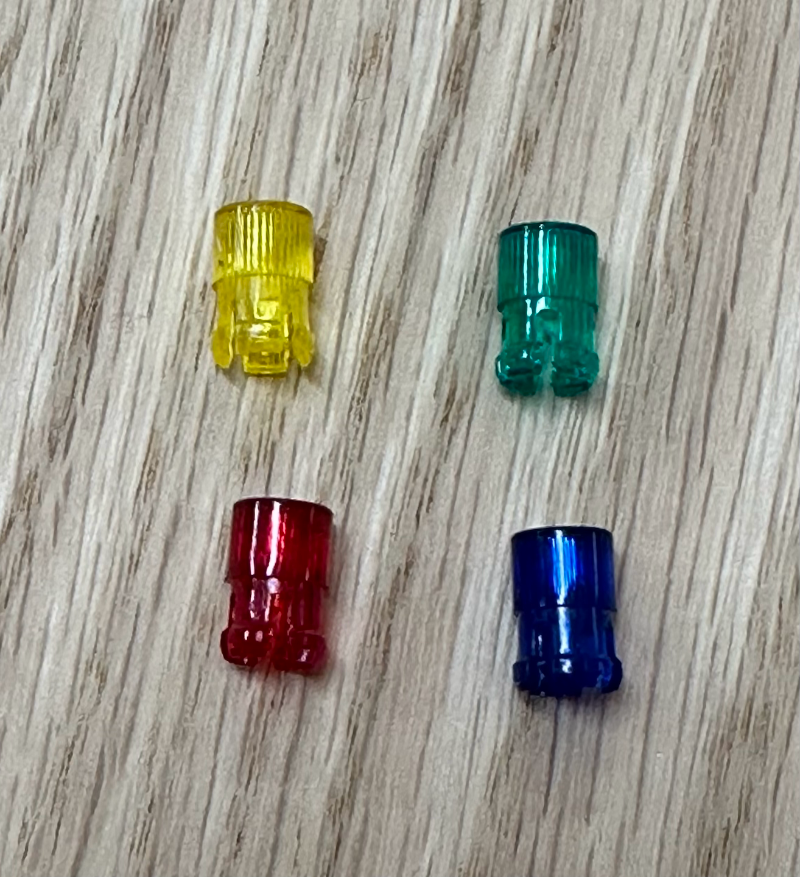

Snap-In Lens

PN: BPI-DMX24-L-R (red lens)
PN: BPI-DMX24-L-G (green lens)
PN: BPI-DMX24-L-Y (yellow lens)
PN: BPI-DMX24-L-B (blue lens)
PN: BPI-DMX24-L-C (clear lens)
Image without caption
Note: the LEDs are always supplied WHITE; the color of the lens determines the color

Switch Assemblies

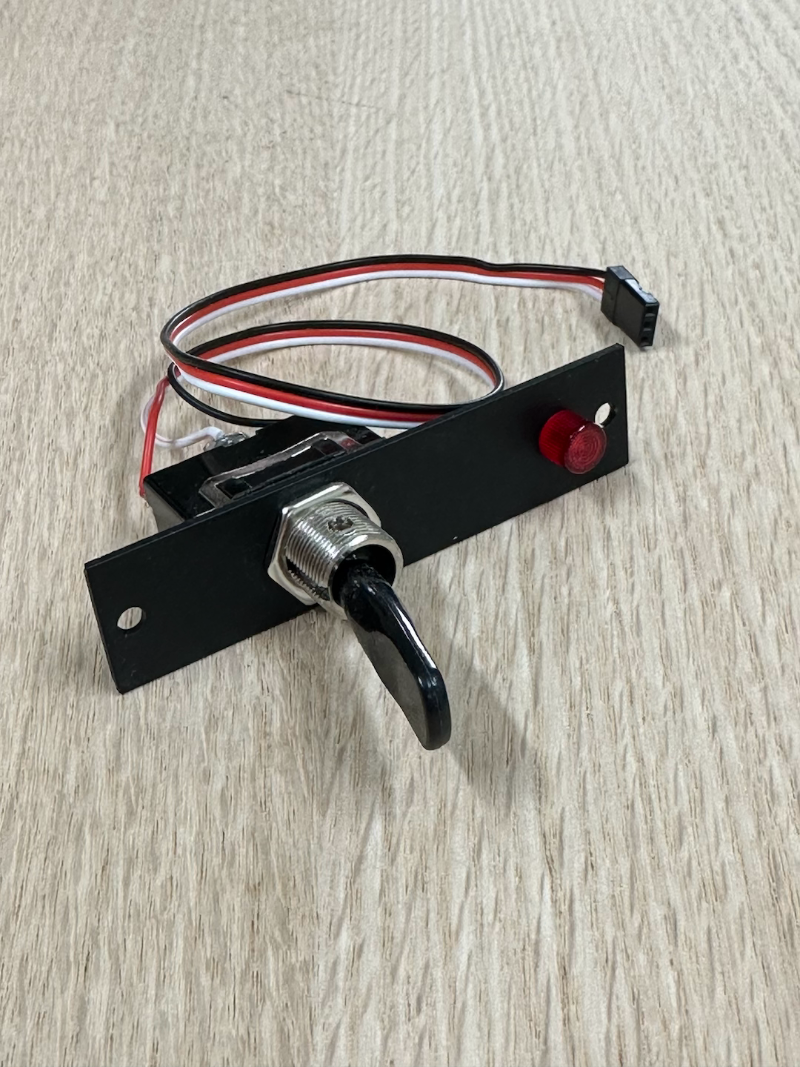

Single Switch - Complete Assembly with Plate

PN: BPI-DMX24-SS-R (red lens)
PN: BPI-DMX24-SS-G (green lens)
PN: BPI-DMX24-SS-Y (yellow lens)
PN: BPI-DMX24-SS-B (blue lens)
PN: BPI-DMX24-SS-C (clear lens)
Image without caption

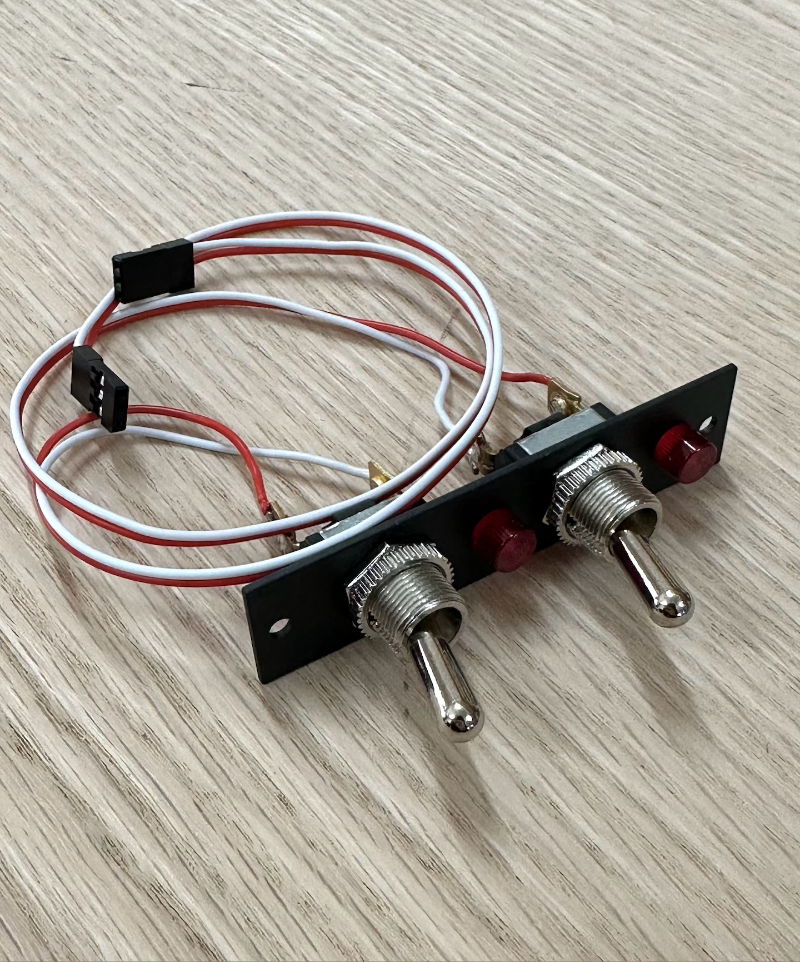

Double Switch - Complete Assembly with Plate

PN: BPI-DMX24-DS-R (red lens)
PN: BPI-DMX24-DS-G (green lens)
PN: BPI-DMX24-DS-Y (yellow lens)
PN: BPI-DMX24-DS-B (blue lens)
PN: BPI-DMX24-DS-C (clear lens)
Image without caption

Electronics Parts

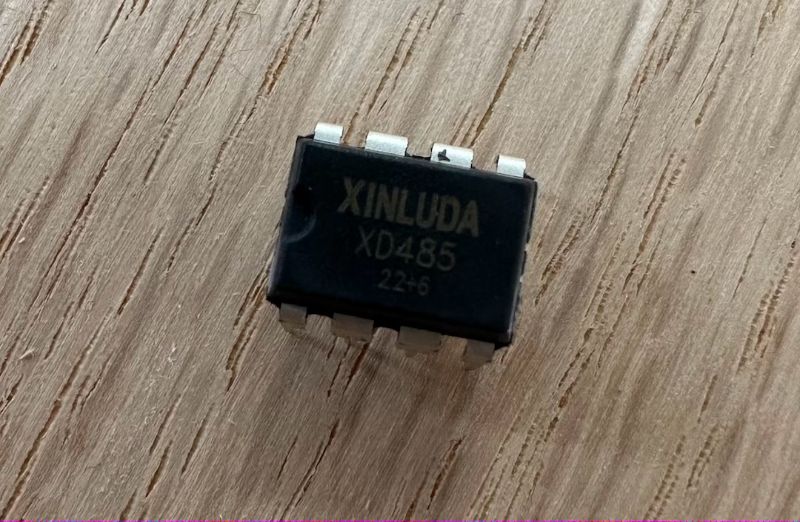

DMX Transceiver IC

PN: BPI-DMX24-RS485
Image without caption

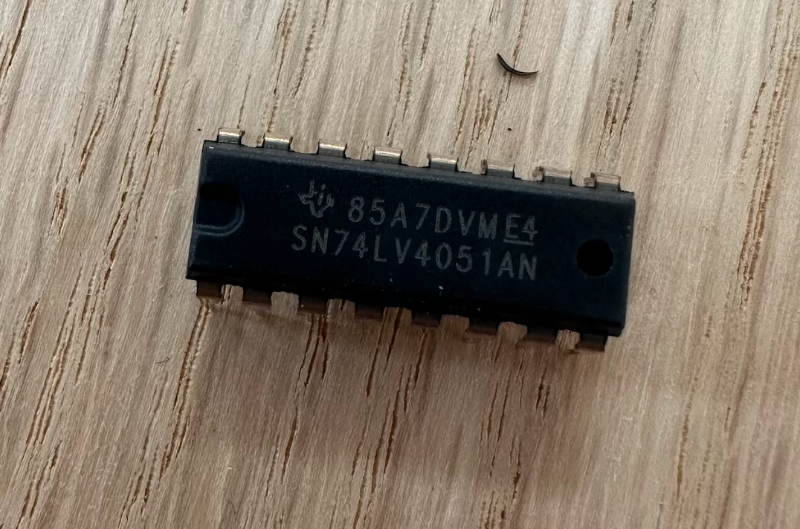

Switch MUX IC

PN: BPI-DMX24-MUX3
Image without caption

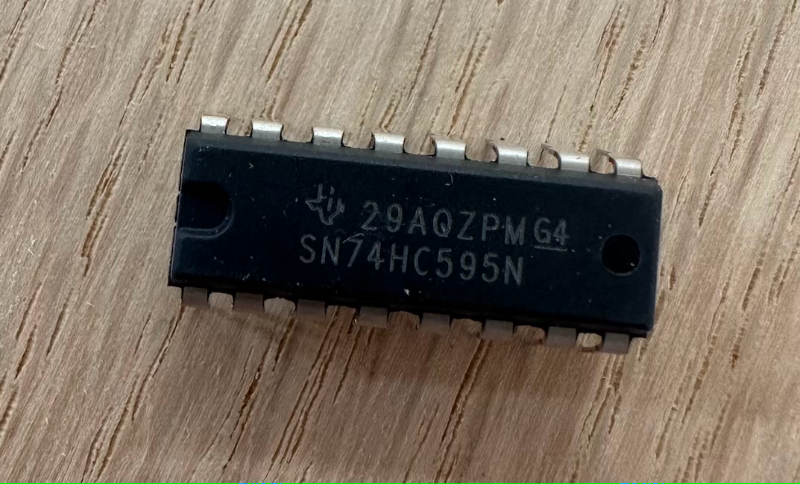

LED Shift Reg IC (3)

PN: BPI-DMX24-SR3
Image without caption

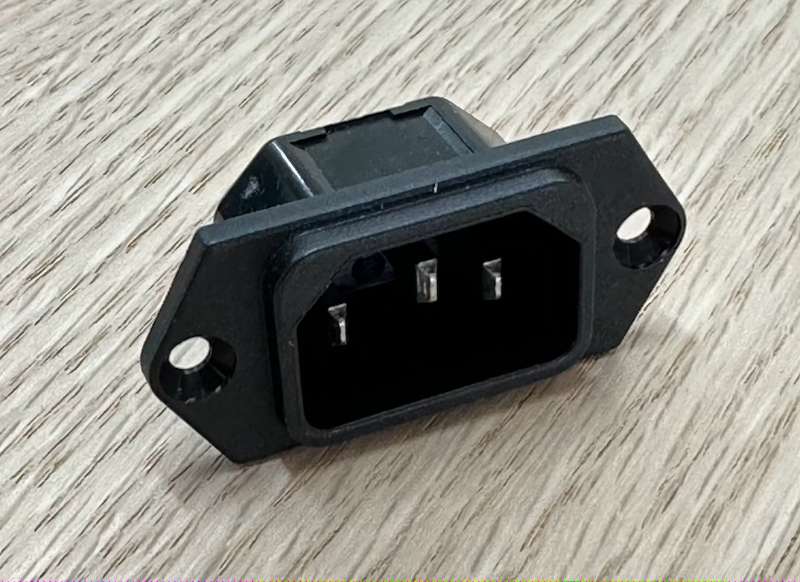

IEC Inlet (with hardware)

PN: BPI-DMX24-IEC
Image without caption

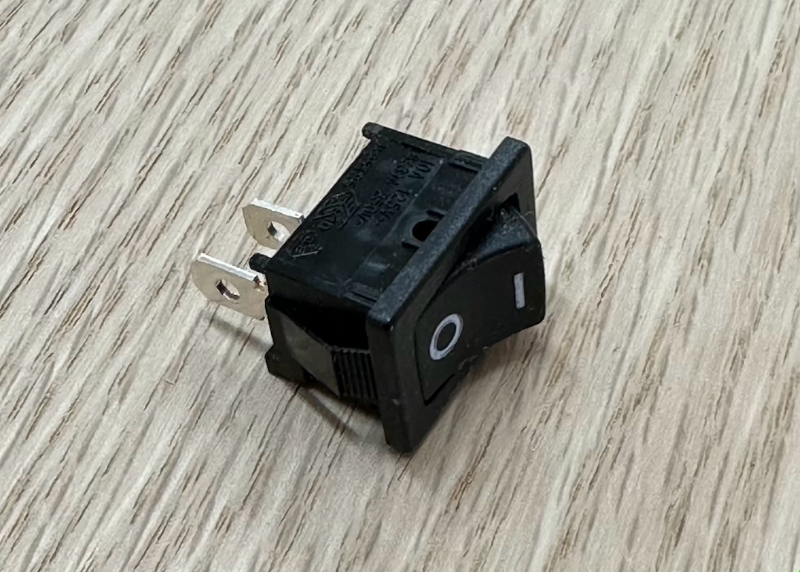

Power Switch

PN: BPI-DMX24-PSW
Image without caption

Electronics Modules

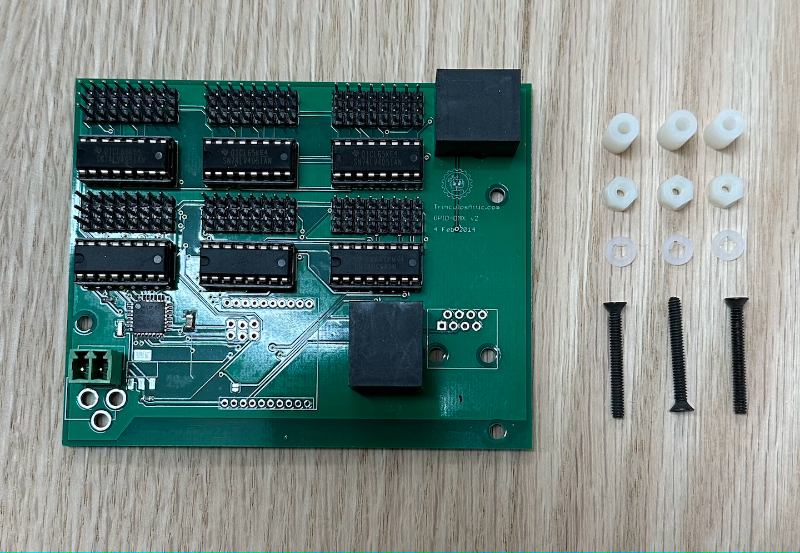

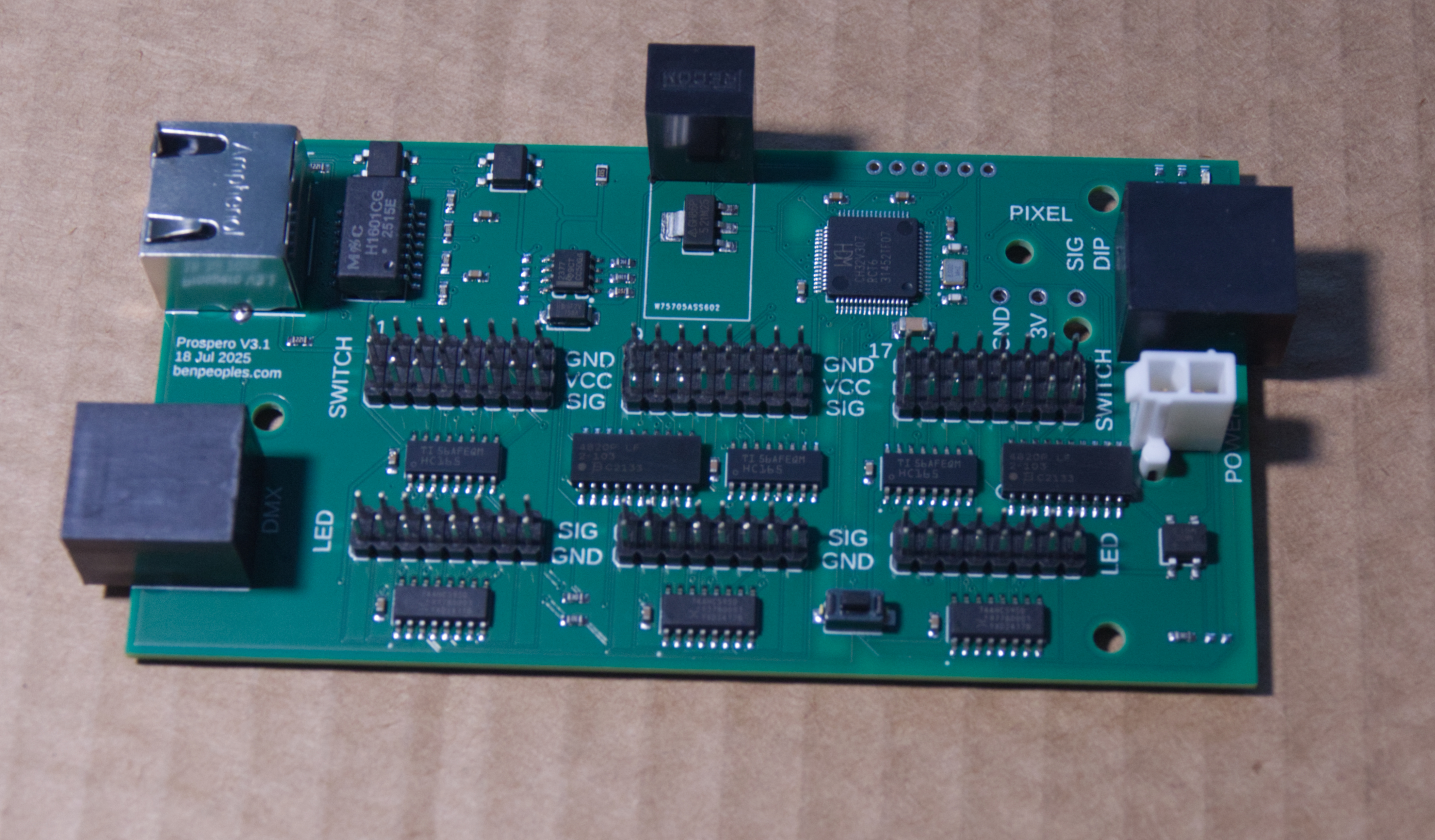

Main Control Board (with hardware)

PN: BPI-DMX24-MCB
Image without caption

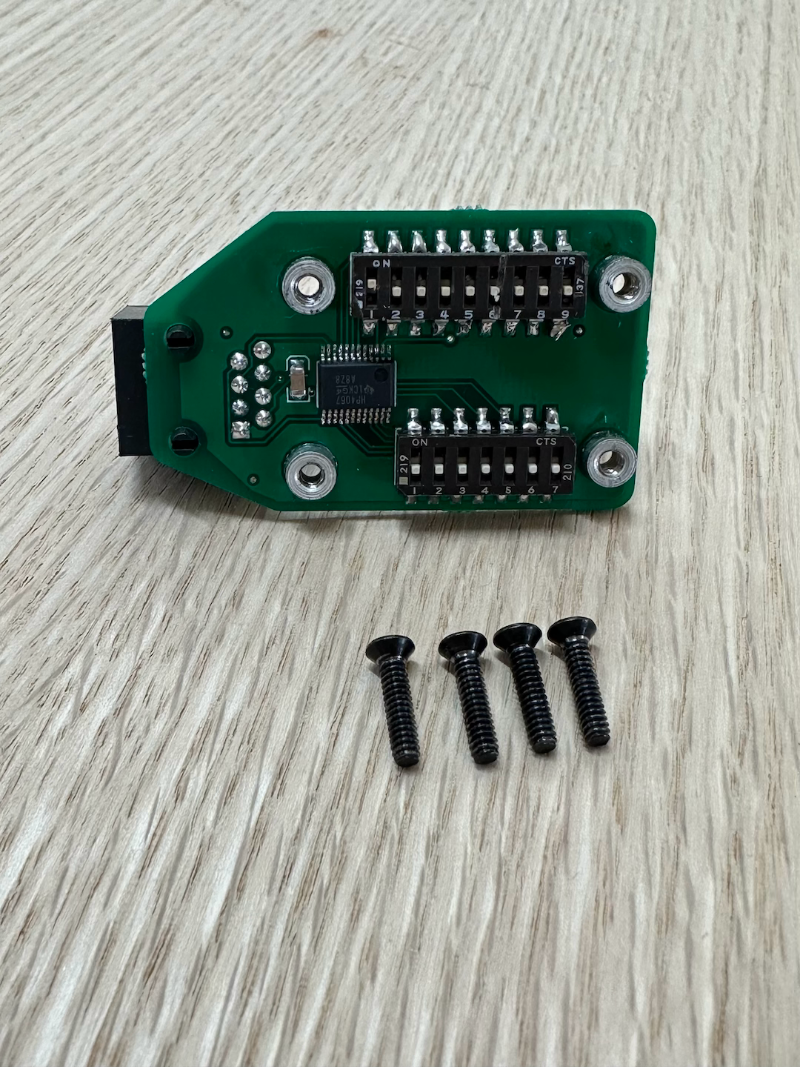

DIP Switch Module (with hardware)

PN: BPI-DMX24-DIPS
Image without caption

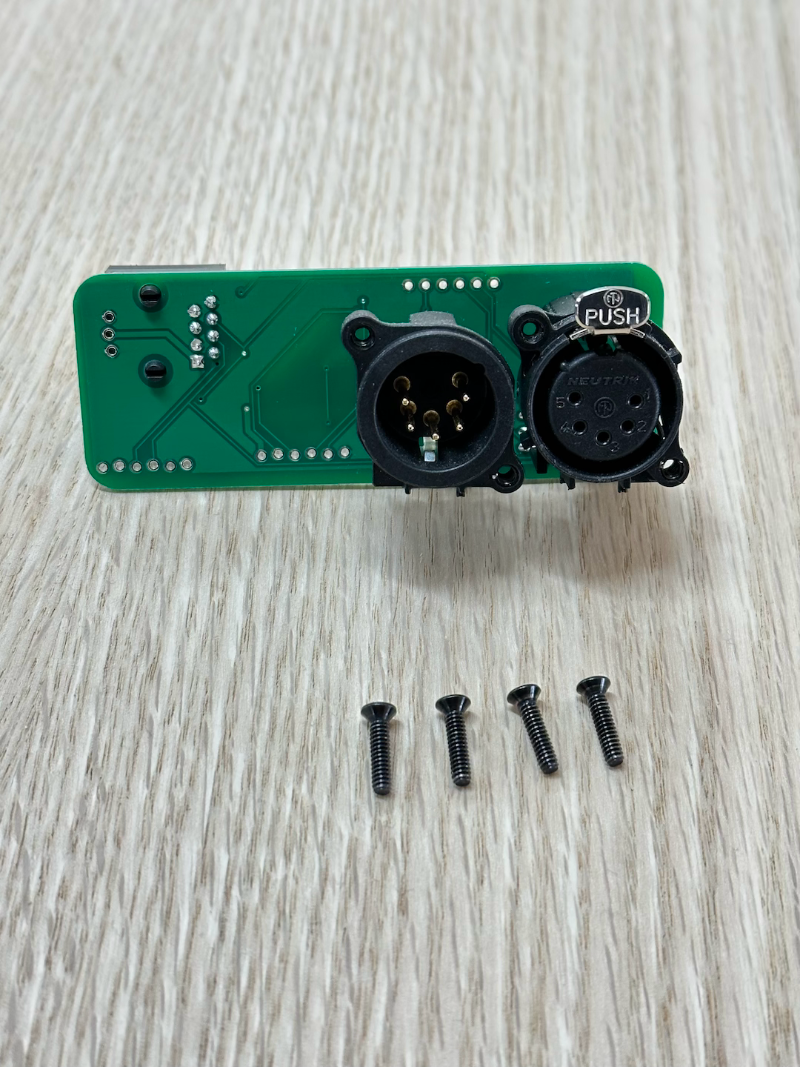

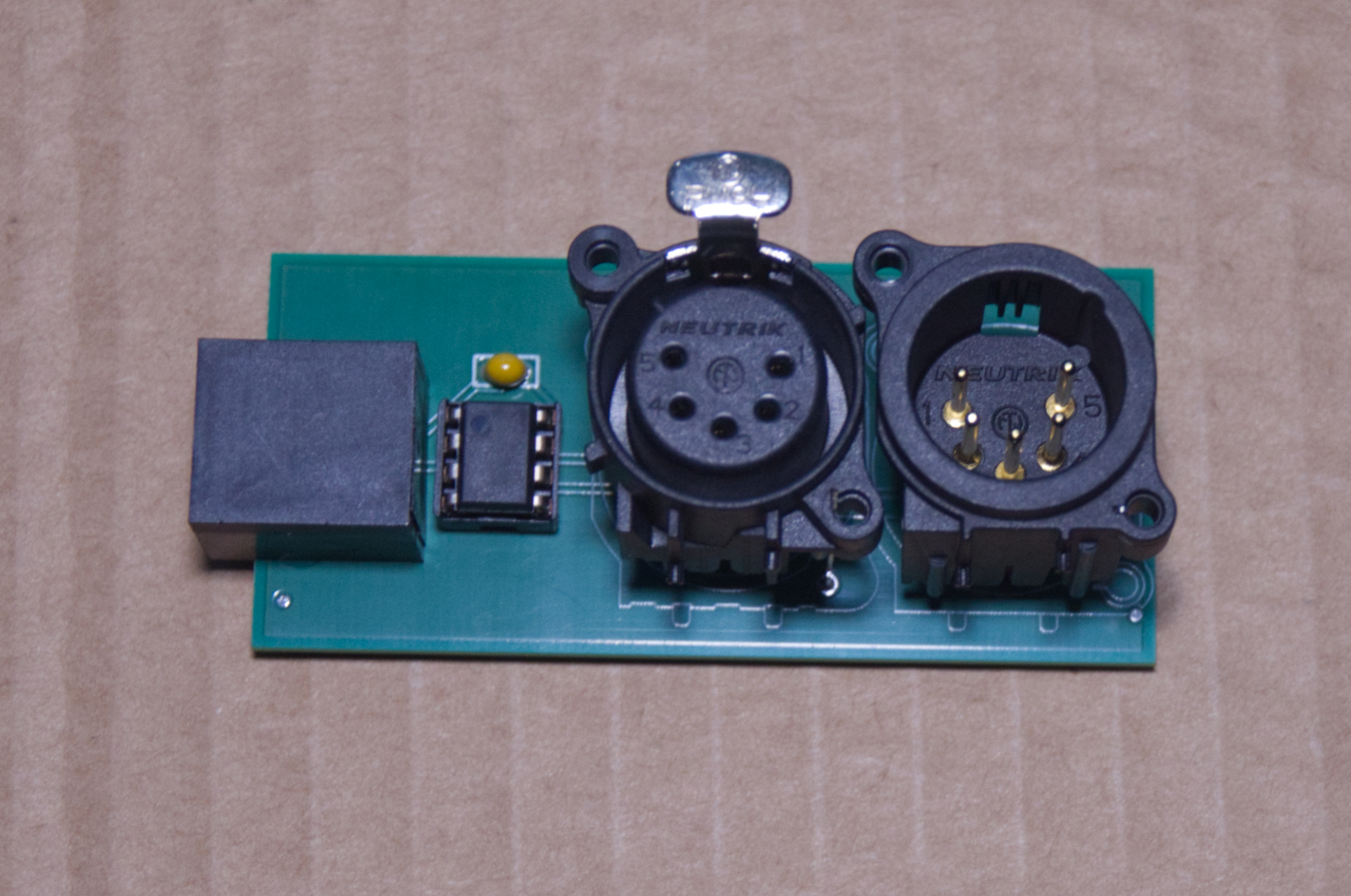

DMX Module (with hardware)

PN: BPI-DMX24-XLR
Image without caption

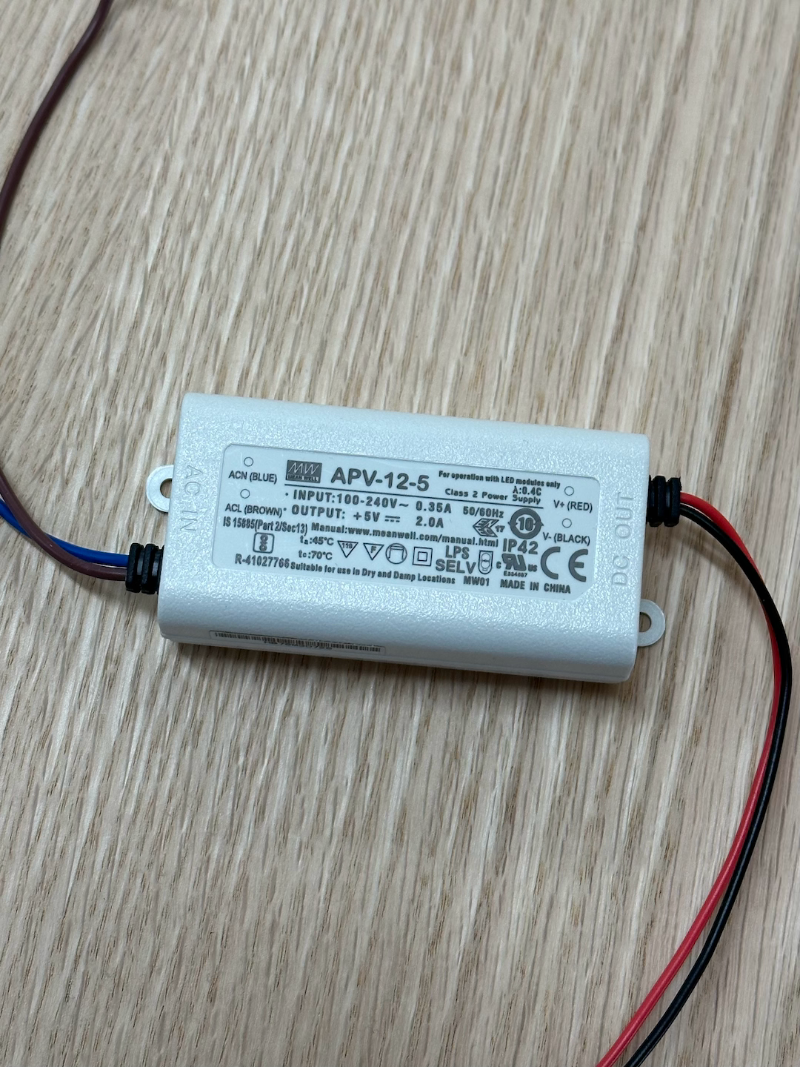

Power Supply

PN: BPI-DMX24-RS15-5
Image without caption

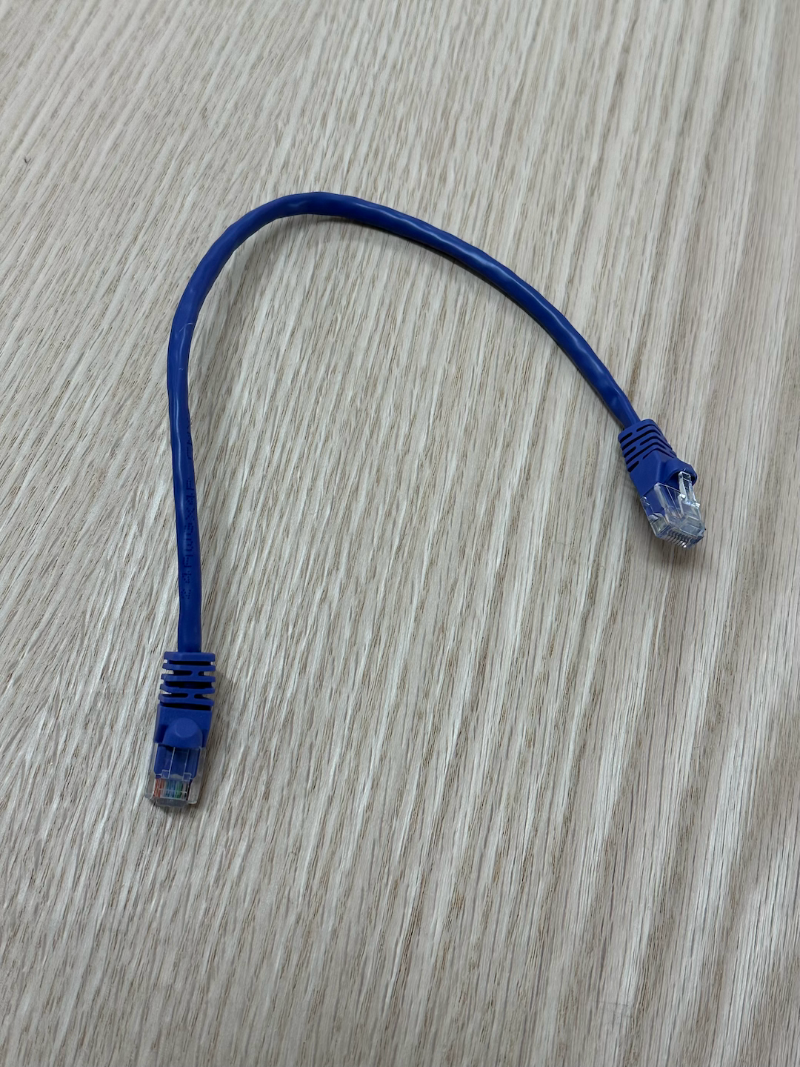

1’ Cat5 Cables (2)

PN: BPI-DMX24-CAT5
Image without caption
